1. Measurement
Please always indicate the finished sizes. By default it will be always considered as the finished sizes

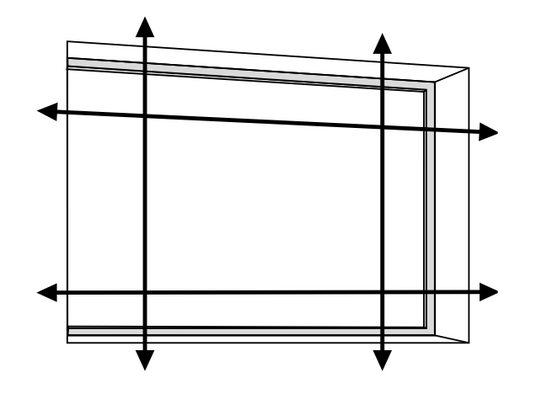

Mounting in the window opening
Finished width = total width - 1cm
(measure the width above and at the bottom - take the smallest size!)
Finished height = total height
(measure the height at the left and the right side – take the smallest size!)
- When choosing a Smart dim-out blind, we suggest -2 mm from finished width and height.

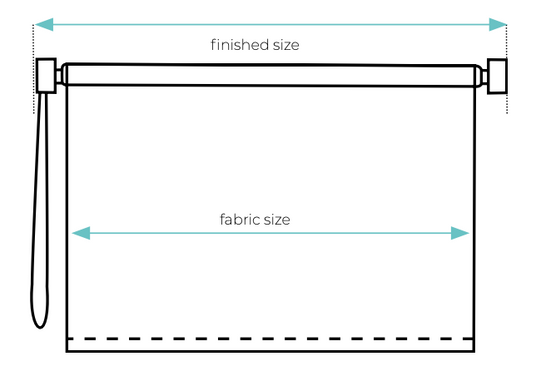

- The difference between finished size and fabric size depends on different items.
Mounting outside the window opening
In this case the blind must be larger and higher than the opening of the window. Please always indicate the finished sizes, considering sufficient overlap in the width and the height.
Rolling direction
- Standard we deliver a roller blind with a normal rolling direction, it means that the fabric is the nearest to the glass.
- The contra rolling direction is also possible, but has to be clearly indicated on the order form.
(not valid with cassette system rounded, open and squared and easy deco cassette.)
-
Normal Rolling
-
Reverse Rolling
2. Seams
Share information about your store with your customers. Describe a product, share announcements, or welcome customers to your store.
- Finishing of a roller blind smaller than the width
of the roll: always without seams regardless the height of the roller blind. - Finishing of a roller blind larger than the width of the roll:
- The height is smaller than the width of the roll:
- the fabric is turned and is finished without seams.

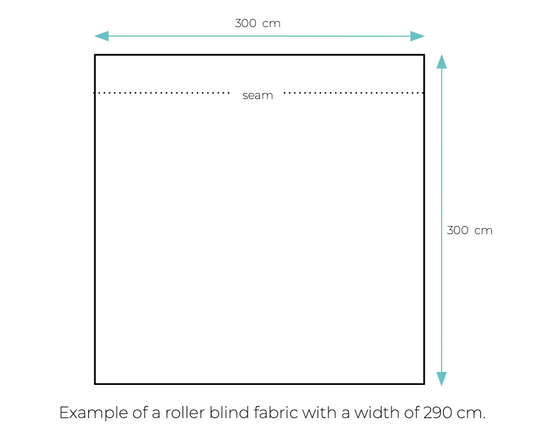

- The height is larger than the width of the roll:
the finishing will happen with a horizontal seam.
3. Smart Roller Blind
Ø28 | Ø38 | Ø50 | Ø65 | Ø80
Chain | Electric | 230V
- Standard system
- Rounded brackets
- Metal brackets with PVC cover or metal cover (with supplement)
- Special cover on the brackets for covering the screws
- Possible options:
• Mounting profile
• Rounded cassette system
• Squared cassette system
• Open cassette system
• Smart Deco profile
• Guidance (tension cables)
• Dim-out blind systems
• Day and night system
•Coupling
Possible colours brackets
pvc white
pvc beige
pvc light grey
pvc anthracite
pvc dark brown
pvc black
metal white
metal champagne
Operation

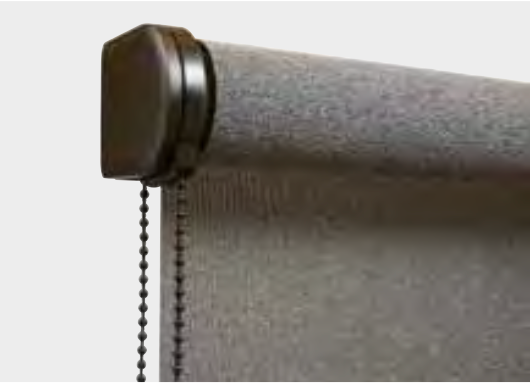

Chain operation
This system is operated with a chain.
Electric operation
For even more operating comfort, you can opt for electric operation.
Available with switching control or remote control.

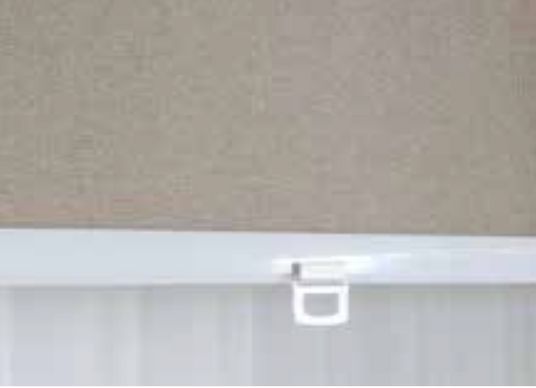

Spring system
Ø28 | Ø38
Possible with mounting profile.
• Possible with rounded cassette.
• Possible with squared / open cassette (only Ø 38).
• Always with tiny, trendy or heavy visible hem bar
• Not possible with smart metal bracket. Only possible with Smart pvc bracket.
-> Surcharge: 32,00 / store
***Not possible in slope windows.

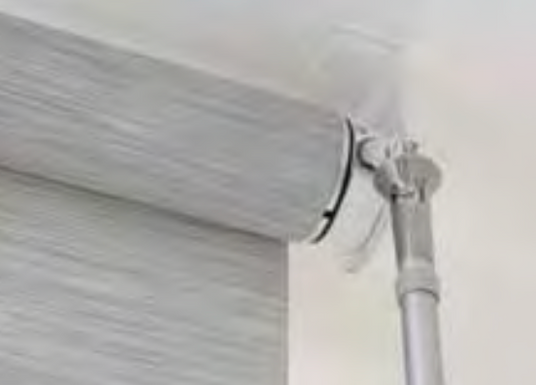

System with rod
Ø65 | Ø80
• Removable rod available at following heights:
100 cm, 125 cm, 150 cm, 175 cm, 200 cm, 225 cm, 250 cm.
• The colour of the rod is always aluminium
-> Surcharge: 55,00 / store

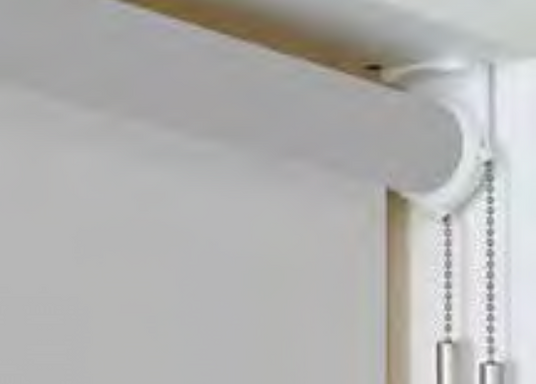

Twin pull
Ø38 | Ø50
The operation consists of 2 metal chains, one for rolling up and one for rolling down.
The chain mechanism is supported by a spring system.
• Always Child-safe!
• Possible with mounting profile • Possible with open cassette
-> Surcharge: 16,00 / store
4. Options Smart Roller Blind

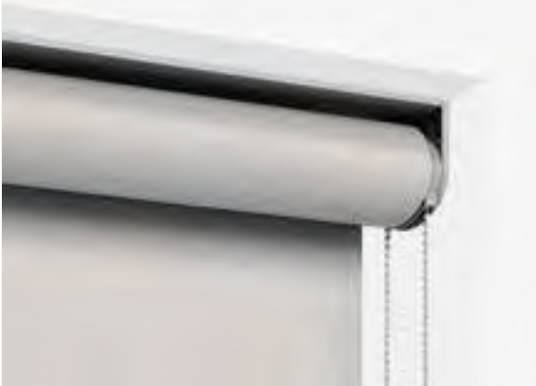

Mounting profile
The mounting profile is fixed with clips.
-
Ø28
RAL 9016
-
Ø38 Ø50 SPRING
ALU RAL -
Mounting profile possible in combination with
Surcharge mounting profile: 20,00 / rm width
